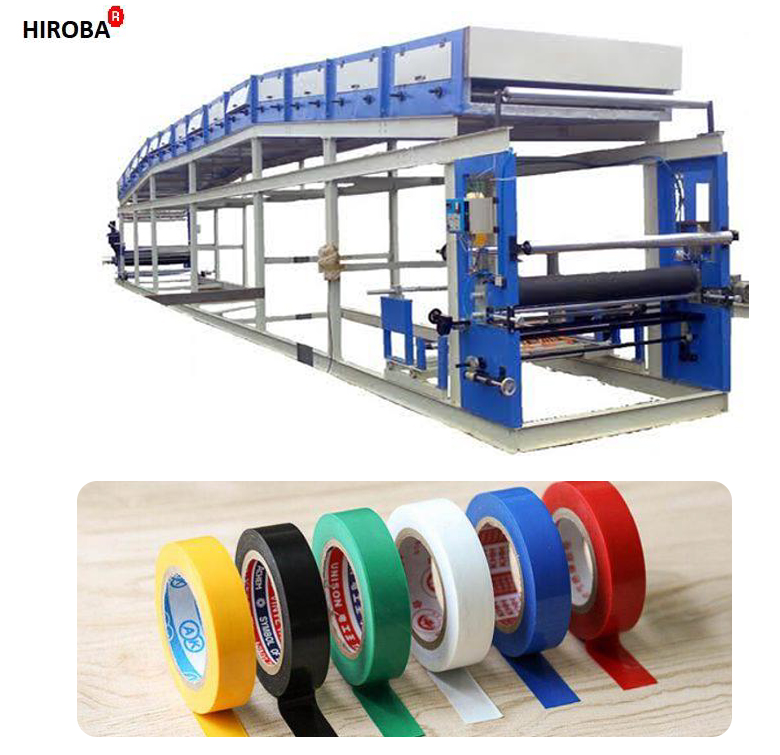

Machine is mainly composed of coating and base material feed unit, the traction unit, coating unit, oven and hot air systems, cooling device, winding unit, electrical control and relevant control instrument, etc.
Specifications
| Model | HIROBA Lø55/75x1350 |
|---|---|
| Width | 1350mm |
| maximum speed | 60m/min |
| Maximum working speed | 0-40m/min |
| paper core specification | 3" (inner diameterΦ76mm) |
| Power | 3 phase 5 wire, 50 HZ, 380 v+/- 10% Air |
| Pressure | 0.8Mpa |
| Electric heating power | 36 kw |
| Tension range | 3-30kg |
| Total Weight | 3500kg |
| Material maximum width | 1300mm |
