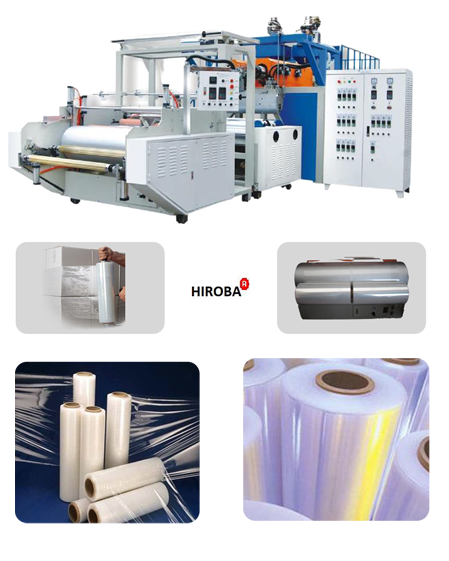

2 Layer Stretch Film Making Machine

  • The design ensures the film quality
  • Enhance the production efficiency
  • Lower down production cost
  • The evenness and appearance of the film rolls make the product more competitive.
  • Total power consumption 75KW.

The cast stretch film production machine group has high plasticizing, easy operation, long life, energy saving features. It i s m ainly for the production of LLDPE film, LDPE film, PE film, CPE film and CEVA film. It adopts advanced torque motor with four axis automatic tension control which can adjust the speed and width of the film fre ely

Specifications
Model HIROBALø55/75x1250
Screw Diameter ø055/75mm
Screw L/D 30:1
Screw Speed 50-150rpm
Width 1000mm/2x500mm
Total power 75KW
Thickness 0.012-0.05mm
Capacity 80-150kg/h
Layer Structure ABC/ACBCA
Total Weight 8T
Dimension (mm) (L)7500x(W)3000x(H)3400

3 Layer Stretch Film Making Machine

  • Automatic hidden.
  • Automatic cutting and roll change
  • Automatic paper core unloading
  • Loading system which ensure the film quality.
  • Tighter and more even roll winding.
  • Total power consumption 75KW.

The cast stretch film production machine group has high plasticizing, easy operation, long life, energy saving features. It is mainly for the production of LLDPE film, LDPE film, PE film, CPE film and CEVA film.

Model HIROBA Lø65/90/x1850
Screw Diameter ø065/90mm
Screw L/D 30:1
Screw Speed 50-150rpm
Width 1500mm/3x500mm
Total power 110KW
Thickness 0.012 0.05mm
Capacity 150 220kg/h
Layer Structure ABC/ACBCA
Total Weight 12T
Dimension (mm) (L)11000x(W)3500x(H)3800
